Adrian Nickel Alloys stands out as a dependable manufacturer and supplier based in Singapore, Pulau Ujong, specializing in top-notch Niobium Sheets and Plates tailored for industries that require exceptional material performance. These products are celebrated for their remarkable corrosion resistance, high melting point, and superb formability, making them perfect for critical applications in sectors like chemical, aerospace, electronics, and nuclear industries. Adrian Nickel Alloys is committed to producing Niobium Sheets and Plates that meet international quality standards, ensuring durability, precision, and reliability—qualities that make them a go-to choice for clients around the globe seeking advanced material solutions.
The Niobium Sheets and Plates are primarily made of niobium, enriched with trace elements that boost their properties. They boast impressive mechanical strength, ductility, and resistance to a variety of corrosive environments, including acids. With a melting point reaching about 2,477°C, niobium remains stable even under extreme conditions. Its lightweight nature, paired with excellent thermal conductivity and superconducting capabilities, further broadens its appeal across specialized industries.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |

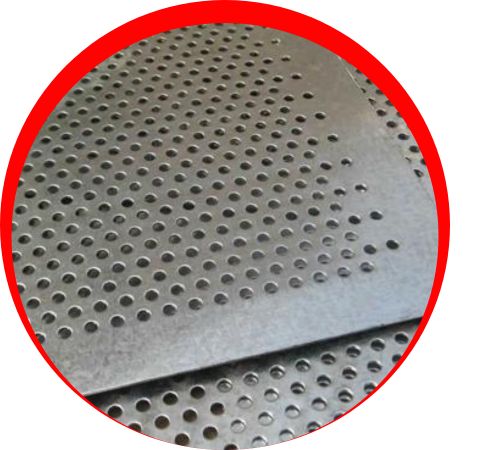

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |

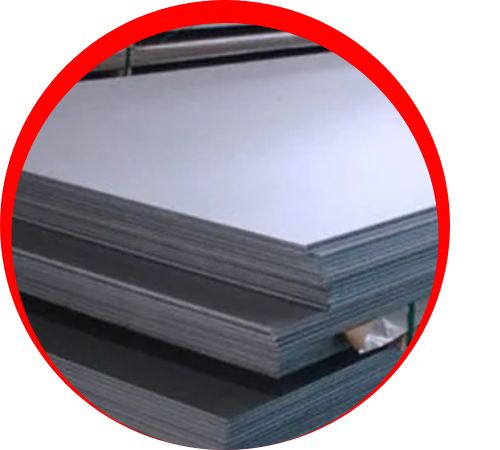

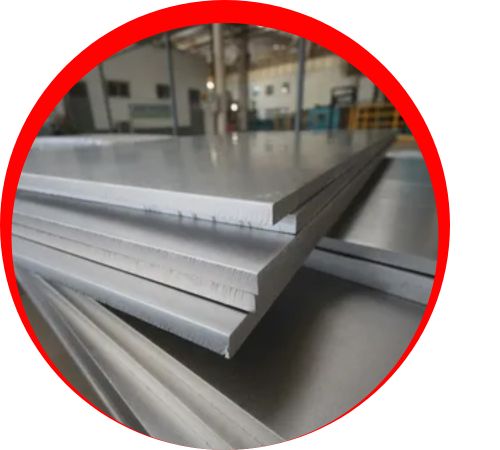

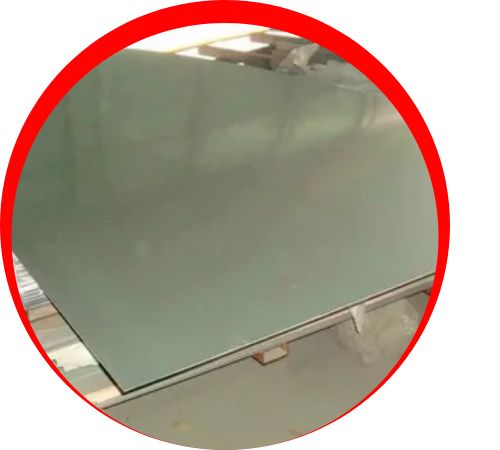

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
At Adrian Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Niobium Sheet and Plates in Pulau ujong, Singapore , providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Pulau ujong, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These Niobium Sheets and Plates find extensive use in chemical processing equipment, superconducting magnets, nuclear reactors, particle accelerators, medical devices, and aerospace components. Their heat and corrosion resistance make them ideal for harsh environments, while their biocompatibility opens doors for medical applications. Adrian Nickel Alloys provides Niobium Sheets and Plates in customized dimensions, thicknesses, and finishes to cater to the unique needs of various industrial sectors worldwide.
